- TENSION & COMPRESSION
- CAPACITY: 1000 lbf /500 kgf /5000 N
- DIGITAL FORCE & TRAVEL DISPLAY
- PRECISION HANDWHEEL DRIVE
- FORCE TESTING SOFTWARE
- ECONOMICAL PRICE

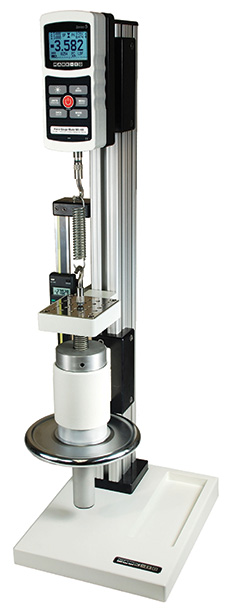

Model TSC/ST - Manual Handwheel Test Stand
|
Made in America, the TSC/ST Spring Tester provides tension and compression testing to 1000 lbf / 500 kgf / 5000 N with precise handwheel and worm drive elevating mechanism for gradual repeatable force application.
Force data is displayed by a selection of digital force gauges - basic and advanced - providing computer output and many other features.
Travel data is displayed by a digital travel display with computer output.
MESURgauge force testing software provides easy set up and user friendly data logging and graphing of force vs. distance for spring testing.
CONSTRUCTION
- Rugged and exceptionally rigid extruded aluminum columns.
- Column length of 24" [610 mm], other lengths available.
- Removable platen with pattern of 25 #10-32 threaded holes.
- Maximum vertical clearance: approx. 14" [356 mm] depending on gauge.
- Maximum vertical travel 3.5" [89 mm].
- Maximum horizontal clearance 3" [76 mm].
- Travel rate: 0.1" [2.5 mm] per handwheel revolution.
OPERATION
- Precise handwheel tension and compression testing.
- Compression testing with 2" [50 mm] diameter plate.
- Tension testing with force gauge and test stand hooks.
ACCESSORIES
- 2" [50 mm] diameter compression platen, medium and large hooks, force gauge mounting and tool kit.
WEIGHT & DIMENSIONS
- 25 lb [11.4 kg].
- 25" [635 mm] H x 6" [152 mm] W x 7.75" [197 mm] D.
|
| TSC/ST-100 |
Manual Spring Tester 2 - 100 lbf |
$3020* |
| TSC/ST-200/500 |
Manual Spring Tester 200 or 500 lbf |
$3170** |
| TSC/ST-1000 |
Manual Spring Tester 1000 lbf |
$3520*** |
| TSC001 |
Digital Travel Display - for TSC |
$650 |
| MRS100A |
Communication Adapter - TSC001 to PC |
$265 |
| |
| * Includes test stand, travel display and choice of M5-2 - 100. |
| ** Includes test stand, travel display and M5-200 or M5-500. |
| *** Includes test stand, travel display and CG 1000. |
| |
|
| M5-XXX |
Mark 10 Digital Force Gauge 2 - 100 lbf / 1 - 50 kgf / 10 - 500 N |
$995* |
| M5-200 |
Mark 10 Digital Force Gauge 200 lbf / 100 kgf / 1000 N |
$1145* |
| M5-500 |
Mark 10 Digital Force Gauge 500 lbf / 250 kgf / 2500 N |
$1145* |
| 09 - 1163 |
Cable, RS232, M5 to PC |
$75 |
| 09 - 1165 |
Cable, USB, M5 to PC - Replacement |
$30** |
| CG 1000 |
Digital Force Gauge 1000 lbf / 500 kgf / 5000 N |
$1495 |
| 09-1048A |
Cable, RS232, M5 to PC |
$75 |
| RSU100 |
Cable, RS232 to USB |
$125*** |
| |
| * Refer to force gauge pages for model numbers and specifications. |
| ** 09-1165 Cable included with all M5 Force Gauges. |
| *** Includes cable, driver and manual on a CD; converts RS232 to USB. |
| NOTE: CG1000/USB computer operation requires 09-1048A and RSU100. |
| |
|
| 15-1004 |
MESURgauge Force Testing Software |
$495* |
| FDIX/KI |
Key Injector Software - PC Software Link |
$50** |
| |
* Feature rich force testing software - force vs. distance analysis.
** Links data received at PC port to operational software, e.g., Excel, etc. |
|
