  SPRING TEST™ STK100 COMPACT SPRING TESTER
CAPACITY: 100 lbf / 50 kgf / 500 N
Buy Now
Print
FORCE TEST FTK 100

  • TENSION & COMPRESSION
  • CAPACITY: 100 lbf / 50 kgf / 500 N
  • PRECISION RACK & PINION
  • LARGE 10" X 10" PLATFORM
  • HANDWHEEL OR LEVER
  • DIGITAL FORCE DISPLAY
  • DIAL OR DIGITAL TRAVEL DISPLAY

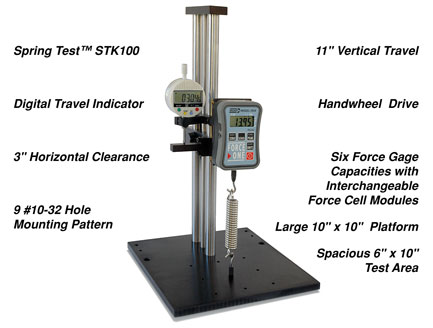

Made in America the STK100 Spring Tester provides a low cost manually operated tester for tension and compression springs. Precision machining ensures smooth movement and precise alignment of the rack and pinion elevating mechanism.

The STK100 is available with quick acting lever or a close control handwheel for testing spring forces to 100 lbf. Force display is provided by the Wagner FDIX Digital Force Gage with six capacities from 2 through 100 lbf. Interchangeable Plug' N Play Force Cell Modules are available to change the force gage capacity of the STK100 at minimum cost.

Spring deflection is measured with a 1" dial travel indicator. Other travel indicators with a wide variety of features can be mounted.

A large 6" x 10" test area is provided with a pattern of mounting holes in the test area. Vertical travel is 12" with a generous 3" horizontal clearance. An adjustable collar is included to provide a stop point for the load beam.

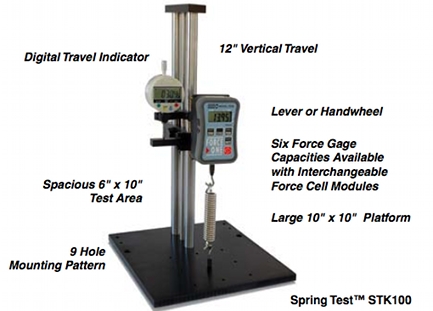

 FTK

CONSTRUCTION
  • Large 10" x 10" aluminum platform; 6" x 10" test area.
  • Grid of 9 #10-32 mounting holes are provided on the platform.
  • Steel guide posts with teflon coated bushings.
  • Steel rack and pinion elevating mechanism.
  • Maximum vertical clearance is approximately 12".
  • Maximum vertical gage travel is approximately 12".
  • Maximum horizontal clearance from guide posts is 3".
OPERATION
  • Tension or compression with handwheel or lever.
  • Compression testing with 2" diameter plate
  • Tension testing with hooks provided with test stand and force gage.
  • Handwheel or lever provide 1" travel for each 360° rotation.
ACCESSORIES
  • Included: 5/8" and 2" diameter plates, 2 hooks and stop point collar.
WEIGHT & DIMENSIONS
  • 10 pounds [5 kg]
  • 17" [430mm] H x 10" [255mm] W x 10" [255mm] D
FDIX DIGITAL FORCE GAGE
Model
Capacity/Graduation
FDIX2
2 x .002 lbf
32 x .04 ozf
1 x .001 kgf
FDIX5
5 x .005 lbf
80 x .1 ozf
2.5 x .002 kgf
FDIX10
10 x .01 lbf
160 x .2 ozf
5 x .005 kgf
FDIX25
25 x .02 lbf
400 x .5 ozf
10 x .01 kgf
FDIX50
50 x .05 lbf
800 x 1 ozf
25 x .02 kgf
FDIX100
100 x .1 lbf
1600 x 2 ozf
50 x .05 kgf
  • STK100 includes FDIX Force Gage of your choice.
    • STK - MODELS & PRICES
    Model Description
    Price
    STK100L Manual Spring Tester - Lever $1395.00
    STK100W Manual Spring Tester - Handwheel
    $1495.00
    Note: Specify model; Example: STK 100L / FDIX 100 / DDI for STK 100 Lever Action / 100 lbf Capacity FDIX Force Gage / Dial Indicator.
    Includes: FTK 100 Test Stand, FDIX Force Gage and DDI or DGI Travel Indicator Kit - Refer to Wagner FTK 100 and FDIX pages for details.
    Optional:
  • Interchangeable Force Cell Modules to change force gage capacity – see Wagner FDIX page for details.
  • Other travel indicator kits - longer, stroke, metric, etc. call
    • stk100_090113_dd.pdf
      Prices and specifications are subject to change without notice. www.wagnerinstruments.com
